S271P is a high-performance full-HD endoscopic surgical medical monitor specially designed for operating rooms.
S271P has the characteristics of high brightness, high contrast, and wide viewing angle. After being connected to the surgical endoscope system, surgeons and staff in the operating room can see smooth, clear and true full HD surgical images.
S271P adopts full-fitting technology, ultra-low reflection, real color, and more detailed pictures, providing doctors with accurate and realistic visual experience.
Hybrid OR Suitable Design
Since Hybrid OR has been the trend of modern operating room, more safety and multi-purpose of OR environment , Beacon surgical display has been designed with rounded corner-edge and Edge to Edge, true flat glass type for the front surface of the display is with IP65 of the protection rate in order to prevent the display from splashing of water and blood and from penetration of foreign substances. The detachable plastic interface cover will be another good product feature to hide and tidy up the power cord and signal cord to for safety and hygienic purpose.
Two independent signal sources can be viewed side by side on the screen at the same time or display in PiP mode in any corner of the display. When using PaP, SBS or PiP, the size and position of both windows can be adjusted.

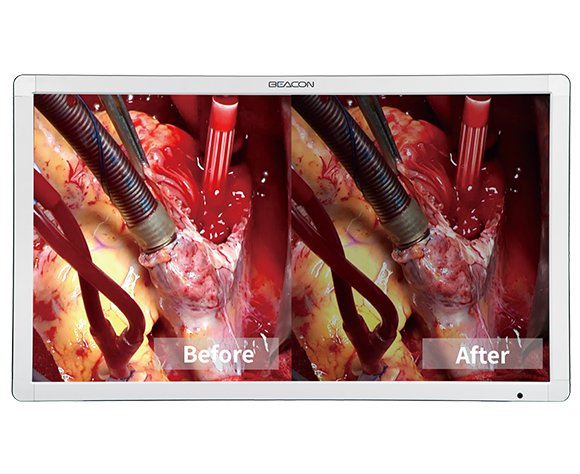

The innovative optical enhancement by vacuum bonding between the LCD panel and the protective screen, will amplify the image performance to eliminate the light reflection and enhance the contrast ratio as the primary purpose and improve the luminance & the color sharpness to suit dedicated surgical imaging.
Long-distance signal transmission
Support long-distance signal transmission up to 30 meters (applicable to DVI, 3G-SDI).

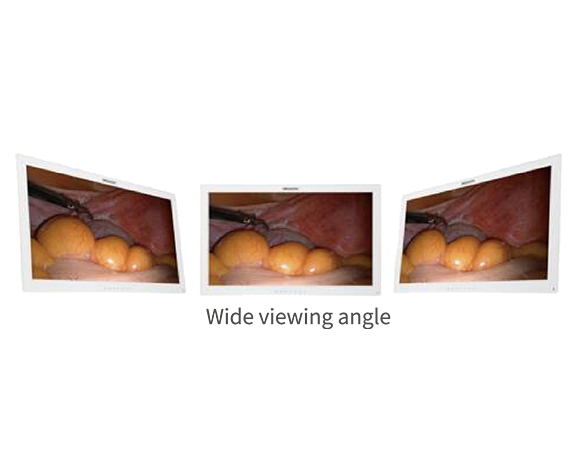

Wide viewing angle
IPS or IPS-PRO panel will be ideal option for surgical imaging, as IPS or IPS-PRO technology performs wider viewing angle with better contrast ratio and color reproduction.
|Product name||FHD Surgical Display|
|Support color||1.07 billion|
|Viewing angle||178° Typ.|
|Input signal interface||DVI-D: 24 pin; VGA: D-sub 15 pin;|
CVBS: BNC; S-VIDEO: DIN4;
RGBS: BNC; 3G-SDI: BNC
