Display Size:24"

Resolution:1920×1080

Support hotline:+86 400-1818-992

Get a quote
Product reselection

Product Description

S2421P is a high-performance full-HD endoscopic surgical medical monitor specially designed for operating rooms.

S2421P has the characteristics of high brightness, high contrast, and wide viewing angle. After connecting with the surgical endoscopy system, the surgeon and staff in the operating room can see smooth, clear and true full HD surgery

S2421P adopts full bonding process. Ultra-low reflection, real colors, more detailed pictures, provide doctors with accurate and realistic visual experience.

C53S+

Feature Highlights

Hybrid OR Suitable Design

Since Hybrid OR has been the trend of modern operating room, more safety and multi-purpose of OR environment , Beacon surgical display has been designed with rounded corner-edge and Edge to Edge, true flat glass type for the front surface of the display is with IP65 of the protection rate in order to prevent the display from splashing of water and blood and from penetration of foreign substances. The detachable plastic interface cover will be another good product feature to hide and tidy up the power cord and signal cord to for safety and hygienic purpose.

Display mode

Two independent signal sources can be viewed side by side on the screen at the same time or display in PiP mode in any corner of the display. When using PaP, SBS or PiP, the size and position of both windows can be adjusted.

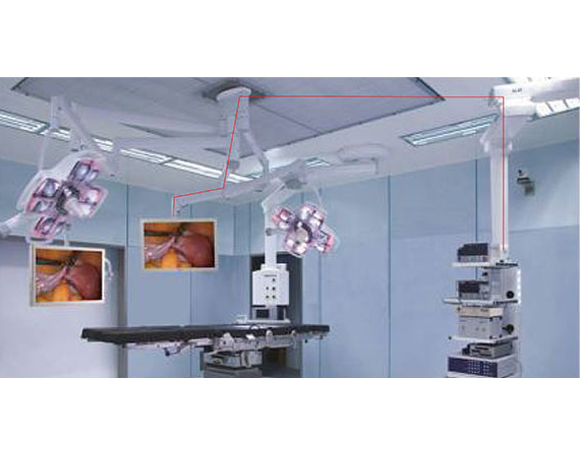

Long-distance signal transmission

Support long-distance signal transmission up to 30 meters (applicable to DVI, 3G-SDI).

Technical Specification
Product modelS2421P
Product nameFHD Surgical Display
Display size24"
Support color16.7 million
Resolution1920×1200
View angle178° Typ.
Brightness600cd/m² Typ.
Contrast ratio1000:1 Typ.
Input signal interfaceDVI-D: 24 pin; VGA: D-sub 15 pin;
CVBS: BNC; S-VIDEO: DIN4;
RGBS: BNC; 3G-SDI: BNC
