Operating Room

Related Product +

4K UHD Surgical Display

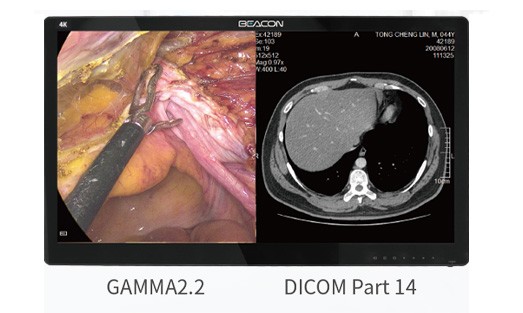

GAMMA split screen display GAMMA split screen display

When displaying two signal sources side by side on the same screen, you can adjust the display mode of each image (gamma 1.8-2.6 or DICOM preset mode) without disturbing the other image. It perfectly present multi- mode applications, in which endoscope, CT and MRI images can be accurately displayed on the same display.


GAMMA2.2 DICOM Part 14

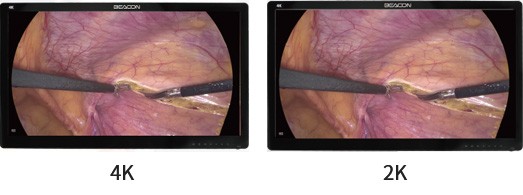

FHD - 4K image upscaling and enhancing technology FHD - 4K image upscaling and enhancing technology

The technology allows the direct seamless access of FHD signal source, and perfectly realizes the FHD image "upscaling- enhance-display" process without delay, so as to ensure the authenticity of the image.

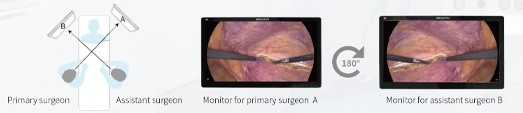

Image 180° rotation and mirroring Image 180° rotation and mirroring

Regardless of the orientation of the surgical camera, you can rotate the displayed image 180 degree or change to mirror image to find the perfect surgical view and improve the convenience of the operating.

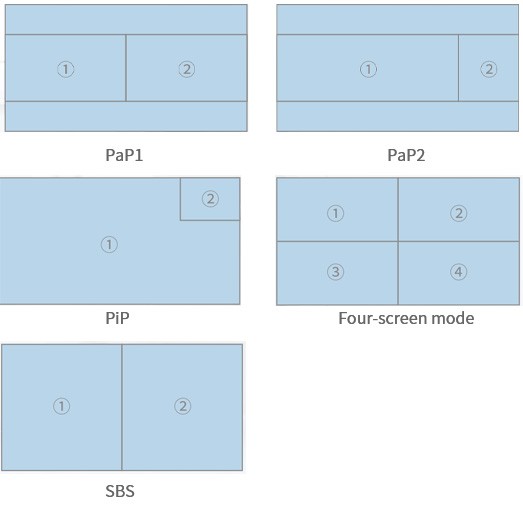

Multi-screen display Multi-screen display

PaP function can be used to view two independent signal sources simultaneously within one screen. With PiP function, the second signal can be displayed above the main signal, size and position of the PiP window can be adjusted. In four-screen mode, four signal sources can be displayed on the monitor screen, arranged in the shape of "田". It is very useful when multiple images need to be viewed at the same time (such as multiple modes). (Four-screen mode is only available on 55-inch 4K monitors)


3.BT.2020 Wide color gamut 3.BT.2020 Wide color gamut

Supporting BT.2020 compliance will allow Beacon's 4K display perform accurate color recognition from analog 4K video connectivity beyond the Beacon's HD monitor's REC709 compliance. It can achieve the perfect presentation of the dynamic images captured by the BT.2020 standard camera.


FHD Surgical Display

Hybrid OR suitable design Hybrid OR suitable design

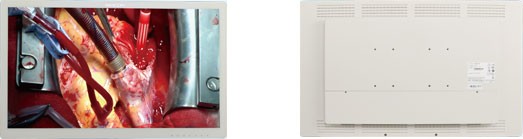

Since Hybrid OR has been the trend of modern operating room, more safety and multi-purpose of OR environment , Beacon surgical display has been designed with rounded corner-edge and Edge to Edge, true flat glass type for the front surface of the display is with IP65 of the protection rate in order to prevent the display from splashing of water and blood and from penetration of foreign substances. The detachable plastic interface cover will be another good product feature to hide and tidy up the power cord and signal cord to for safety and hygienic purpose.

Display mode Display mode

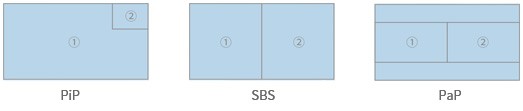

Two independent signal sources can be viewed side by side on the screen at the same time or display in PiP mode in any corner of the display. When using PaP, SBS or PiP, the size and position of both windows can be adjusted.

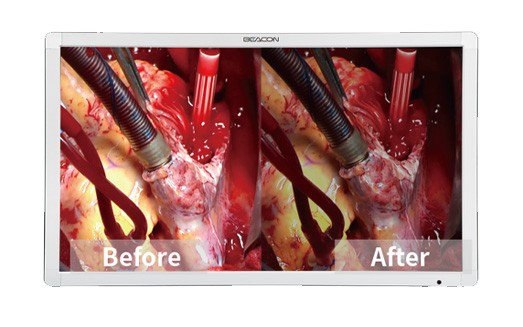

Optical bonding Optical bonding

The innovative optical enhancememt by vacuum bonding between the LCD panel and the protective screen, will amplify the image performance to eliminate the light reflection and enhance the contrast ratio as the primary purpose and improve the luminance & the color sharpness to suit dedicated surgical imaging.

Long-distance signal transmission Long-distance signal transmission

Support long-distance signal transmission up to 30 meters (applicable to DVI, 3G-SDI).

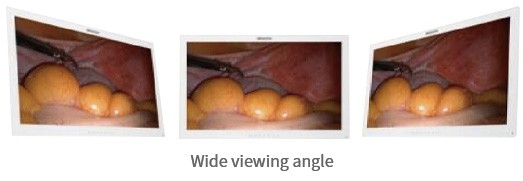

Wide viewing angle Wide viewing angle

IPS or IPS-PRO panel will be ideal option for surgical imaging, as IPS or IPS-PRO technology performs wider viewing angle with better contrast ratio and color reproduction.

Anti-reflection technology Anti-reflection technology

Applying multi-layer AR coating to display surface, the reflection of light can be effectively reduced and optical bonding technology will reduce the light reflectivity to less than 2%.

Endoscopy Display

FEATURE HIGHLIGHTS
PiP function PiP function

The second signal can be performed in any corner of the display, and the window size can be adjusted. This is very useful when using multiple signals at the same time (only for display ≥ 24 inches).

Signal compatibility Signal compatibility

Compatible with DVI-D, 3G-SDI, RGB, CVBS, S-VIDEO and other different signal inputs, suitable for various endoscopes such as gastroscope, enteroscope, otolaryngology, etc.

Dual screen function Dual screen function

View two independent signal sources side by side on one screen at the same time, the size of both windows can be adjusted (only for display ≥ 24 inches).

Installation method Installation method

It supports multiple installation methods such as trolley arm, wall hanging, and desktop to adapt to different application scenarios.

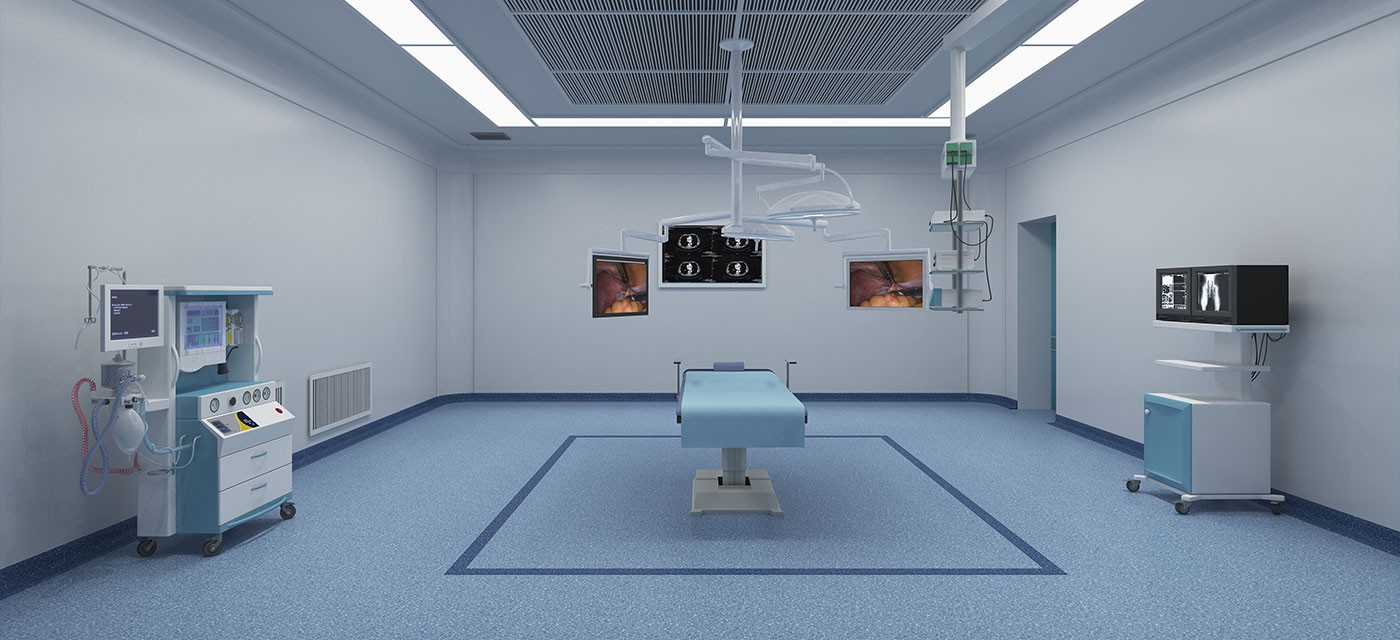

Operating Room Comperhensive Information Display Center

In the digital era, X-ray film and analog X-ray light box have become a past tense. Today digital systems have been integrated into the daily work of hospital and support various work flows in the operating room. Beacon's 55" embedded surgical display is a centralized display unit specially developed for the operating room. It can support the centralized display of multiple images such as PACS, HIS/RIS, endoscope, ultrasound, surgical field, pathology, etc., provides excellent image displays for doctors even though viewing from a distance in the operating room.

Related Product +

Multi-image information centralized display

Support the centralized display of multiple images such as PACS, HIS/RIS, endoscope, ultrasound, etc,. It also supports picture-in-picture, dual-screen, and four-screen images information on the same screen.

Built-in PC components

Provide convenient access for PACS images or HIS/RIS information.

Touch screen

Built-in infrared touch screen, support six-point touch, support zoom in, zoom out, annotation and other operations, electronic whiteboard software is provided as standard.

System integration andcleaning

Intelligent heat circulation system is built inside, thus no need to establish special ventilation system, the system can stay safe and stable; the surface of the display is flat, completely sealed, can be integrated with the wall of operating room to ensure safety and comply with the cleaning and disinfection procedures of the operating room.

System maintainability

The system installation adopts box and telescopic bracket design, which is convenient for installation and dis-assembly and will not damage the wall of the operating room.

Multi-image information centralized display

Support the centralized display of multiple images such as PACS, HIS/RIS, endoscope, ultrasound, etc,. It also supports picture-in-picture, dual-screen, and four-screen images information on the same screen.

Built-in PC components

Provide convenient access for PACS images or HIS/RIS information.

Touch screen

Built-in infrared touch screen, support six-point touch, support zoom in, zoom out, annotation and other operations, electronic whiteboard software is provided as standard.

System integration andcleaning

Intelligent heat circulation system is built inside, thus no need to establish special ventilation system, the system can stay safe and stable; the surface of the display is flat, completely sealed, can be integrated with the wall of operating room to ensure safety and comply with the cleaning and disinfection procedures of the operating room.

System maintainability

The system installation adopts box and telescopic bracket design, which is convenient for installation and dis-assembly and will not damage the wall of the operating room.
