Traditional DSA Image Display

Low display resolution

Incomplete patient information during surgery

The image cannot be zoomed in or out arbitrarily

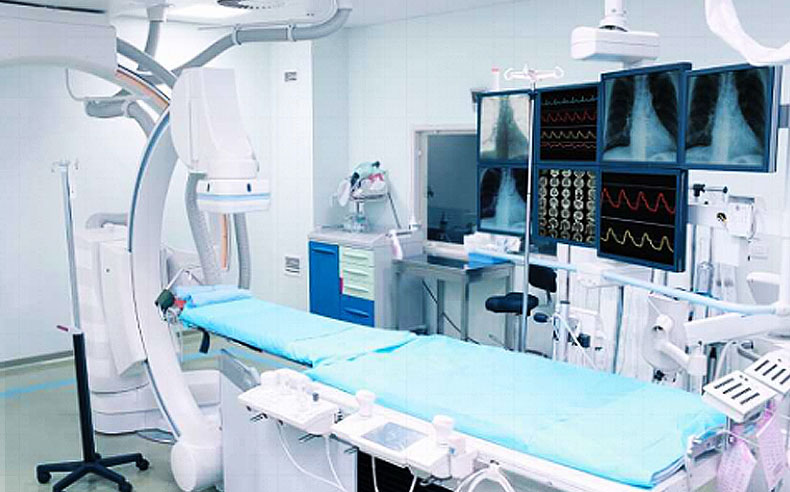

There are many screens and the environment is messy

Display control is not convenient

Images and windows cannot be flexibly configured

Beacon DSA Operating Room Image Solution

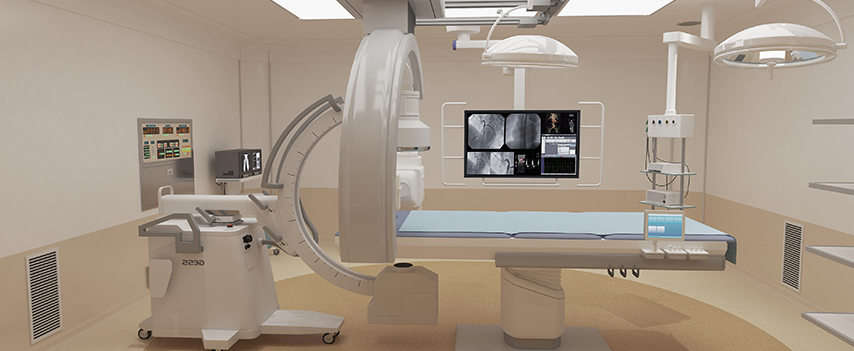

One large screen (55-inch)

NO.1

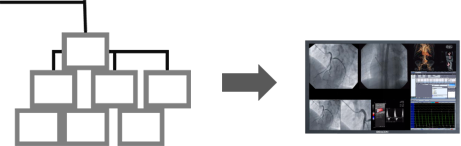

High performance instead of multiple small screen display

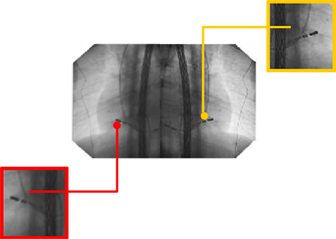

Clear images and true colors

NO.2

8MP 4K*2K display

Wide viewing angle, multi-angle viewing without distortion

Rich Image Information

Support access to multiple auxiliary equipment, such as ultrasound, life monitor, Multi-mode physiology instrument, PACS image, pathology, etc...

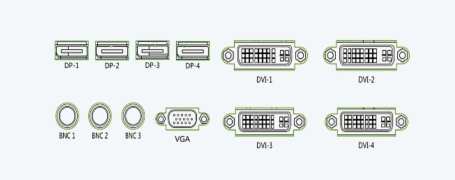

Up 12 channels video signal inputs, any 8 signal outputs support long-term transmission (Maximum up to 30 meters)

Leading technology

Using IPS-Pro Panel

Display Images in Real Time

Ensure image lossless, ultra-low latency transmission FPGA signal processing and split-screen technology enable the real-time display of operation images come true, which is much better than the video matrix technology

Higher Security

Dual Power Supply, Signal Backup, Multiple Guarantees Silicone protects the front of the LCD screen to ensure that the monitor will not be damaged by liquid splashing during the operation

Easy Matching

Matching with various types of high-end C-arm equipments from GE, Philips, Siemens, Canon, Shimadzu, etc.

Readily Available Screen Layout

Remote control function: the 55-inch display and control panel can be remote interacted through a 8.4-inch control panel.

Touch for glove mode is supported, the user can switch different layout very conveniently,

Global Verificated

Since the first installation, Beacon S551 has been used worldwide for tens of thousands of DSA operations.

Pakistan Doctors Hospital

Peking University People's Hospital

Yunnan Luliang People's Hospital

Jiangsu Gaoyou People's Hospital

Linyi People's Hospital

Suzhou Municipal Hospital

Qidong People's Hospital

Shanghai Tongren Hospital

Shanghai Ruijin Wuxi Branch Hospital

Guizhou Dushan County People's Hospital

Shenzhen Third People's Hospital

Shanghai Putuo Central Hospital

Xijing Hospital

Beijing 301 Hospital

Shanxi Children's Hospital

Baoding First Central Hospital

Peking University Shenzhen Hospital

Zhoupu Hospital, Pudong New Area, Shanghai

Shandong Qianfoshan Hospital

Baoan Traditional Chinese Medicine Hospital

Qilu Hospital of Shandong University

Xuzhou Children's Hospital

Yunnan Cancer Hospital

Weifang People's Hospital

Beijing Anzhen Hospital, Capital Medical University
