G23S+
G23S+
Display Size：21.3"
Resolution：1600x1200
Support hotline：+86 400-1818-992
Get a quoteProduct Description

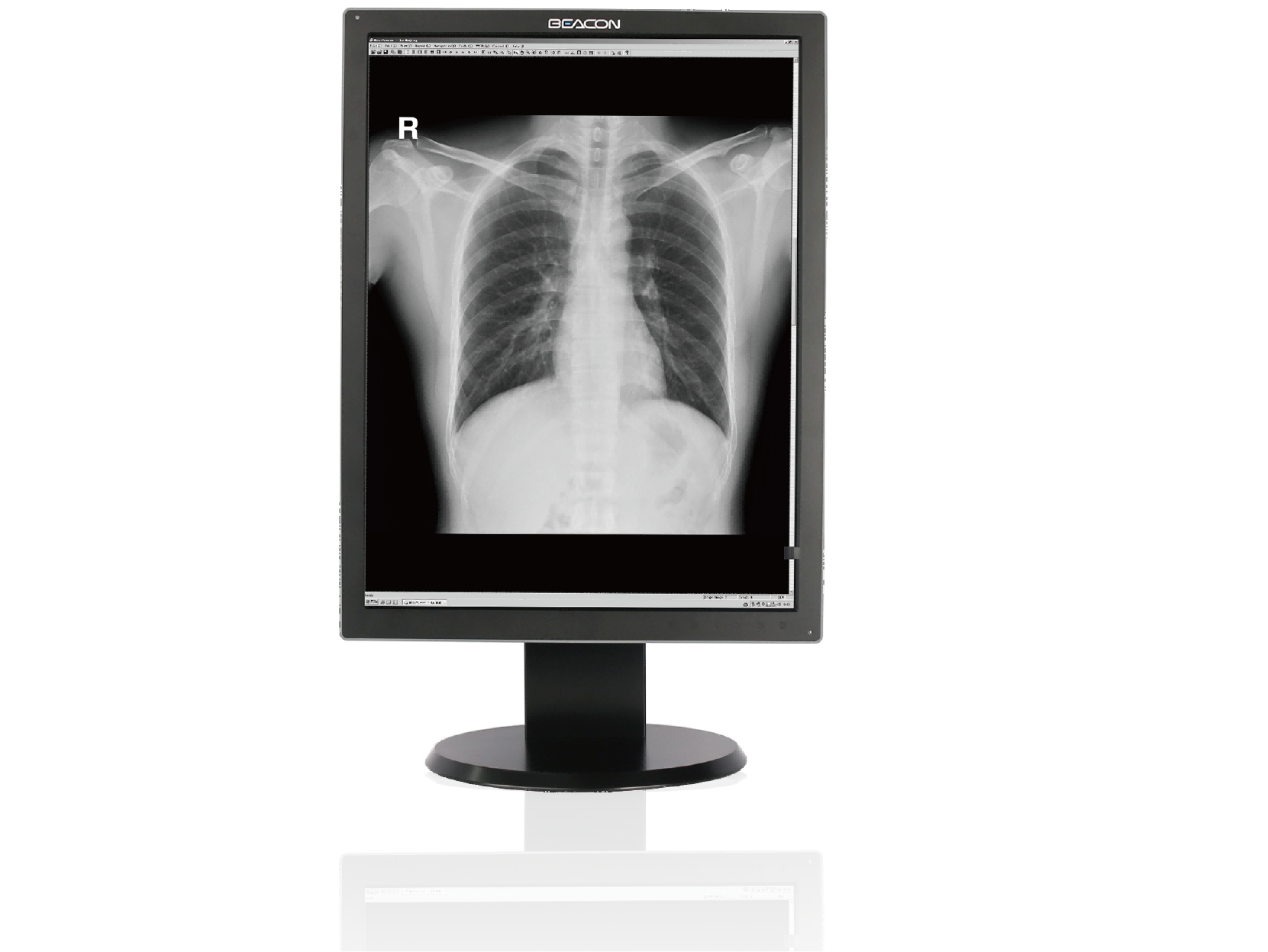

G23S+ is a 21.3 inch TFT LCD grayscale monitor. It is specifically designed to provide the high definition images output for general Radiography. The product has been strictly calibrated so it meets DICOM Part 3.14 and other standards. It uses the latest generation of LED backlight panel, supporting resolution 1600 x 1200. The built-in brightness stabilization control circuit makes sure the brightness of this monitor is stable in its life and the calibration is continuous, so the product meets the demand of high precision medical imaging. The ambient light sensor is fixed at the upper left corner of the front bezel and combined with internal auto-backlight control circuit for auto-backlight control. A high sensitive optical sensor is fixed in front of the panel surface for continual DICOM calibration in conjunction with calibration application software (Optional function). For the G23S+ surface protection panel with anti-reflection coating, there are characteristics such as anti-reflection, easy cleaning and anti-scratch screen.
Feature Highlights
Ambient Brightness Adaptive System
The front integrated brightness sensor continuously monitors the ambient brightness and automatically adjusts the screen brightness to ensure that the display meets the DICOM standard under any ambient brightness.
Backlight stabilization system
The built-in integrated backlight sensor continuously monitors the brightness of the backlight. It can quickly achieve brightness stability at startup and automatically compensate for changes in ambient temperature and brightness loss caused by long-term use, maintaining brightness consistency throughout the product life cycle.
Comply with DICOM international standard
Accurately display medical images and the smallest details, and maintain the display consistency of different monitors, as well as the display consistency between monitors and different imaging equipment, to ensure diagnostic accuracy.
Continuous Quality Assurance System
The front-end integrated sensor monitors and corrects the grayscale and color of the screen, continuously and automatically ensures the accuracy of medical image display and centralized management through the network.
Feature Highlights
Low Blue Light Technology
Blue light is a part ofthe short-wave light in the spectrum, which is abundant in the normal display screen. Long-term exposure to blue light is the main cause of maculopathy. The main symptoms of maculopathy are central visual impairment and visual deformity. Over 50% of the blue light can be cut down by low blue light technology, the risk of macular degeneration can be significantly reduced.
Product model | G23S+ |
Product name | 2MP Color Medical Display |
Display size | 21.3" |
Support color | 1024 Grayscale |
Resolution | 1600×1200 |
View angle | 178° Typ. |
Brightness | 2000 cd/m² Typ. |
Contrast ratio | 1800:1 Typ. |
Input signal interface | DVI-D: 24 pin; DisplayPort: 20 pin; VGA: D-sub 15 pin |
