Display Size:21.3”

Resolution:2560×2048

Support hotline:+86 400-1818-992

Product Description

G510S is with 5MP (2560X2048) high resolution, high brightness, high contrast ratio and wide viewing angle can be applied to various medical image equipment and PACS system. Each monitor is stricty calibrated to compliant with DICOM standard, ensure the accurate display of medical images and details. The built-in backlight stabilization system can ensure the consistence performance in long-term use.

G510S has color and grayscale imaging functions, 5 million pixels ultra-high resolution, ultra-high brightness, ultra-high contrast, wide viewing angle and low power consumption. It can be widely used in various medical imaging equipment including digital breast and PACS system.

C53S+

Feature Highlights

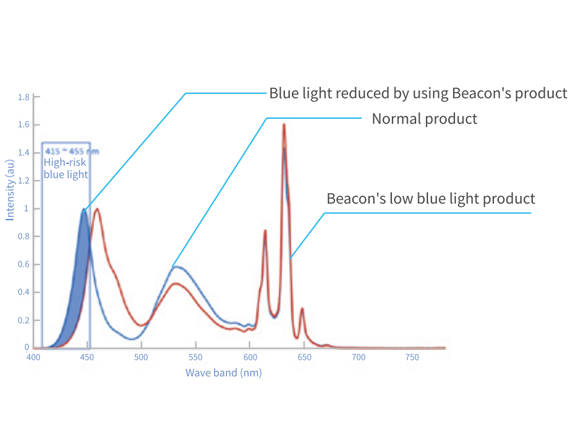

Low Blue Light Technology

Blue light is a part ofthe short-wave light in the spectrum, which is abundant in the normal display screen. Long-term exposure to blue light is the main cause of maculopathy. The main symptoms of maculopathy are central visual impairment and visual deformity. Over 50% of the blue light can be cut down by low blue light technology, the risk of macular degeneration can be significantly reduced.

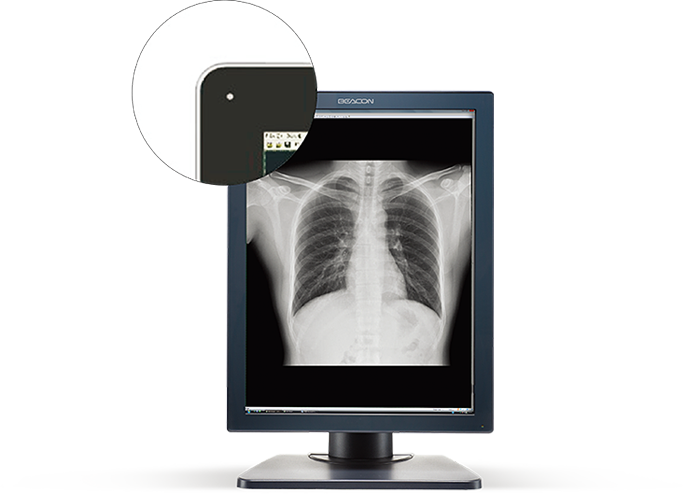

Ambient Light Adaptive System

With built-in integrated front ambient sensor, the ambient environment can be monitored continuously, the brightness can be adjusted to a proper level automatically to ensure the display is compliant with DICOM standard under any ambient environment The diagnostic accuracy is increased and discomfort and eye-strain can also be avoided.

Continuous Quality Assurance System

With integrated front sensor, grayscale and color can be monitored and calibrated. The display accuracy of medical image is continuous automatically assured, and can also be network centralized managed.

Compliant with DICOM Standard

Medical images including the most subtle details can be displayed precisely. Keep display consistency between different displays as well as display and different imaging modalities, ensure the accuracy of diagnosis.

Technical Specification
Product modelG510S
Product name5MP Low Blue Light Grayscale Medical Display
Display size21.3"
Support color1024 grayscale
Resolution2560×2048
View angle178° Typ.
Brightness3000cd/m² Typ.
Contrast ratio2000:1 Typ.
Input signal interfaceDVI-D: 24 pin
DisplayPort: 20 pin
