Display Size:31.5“

Resolution:3840 x 2160

Support hotline:+86 400-1818-992

Product Description

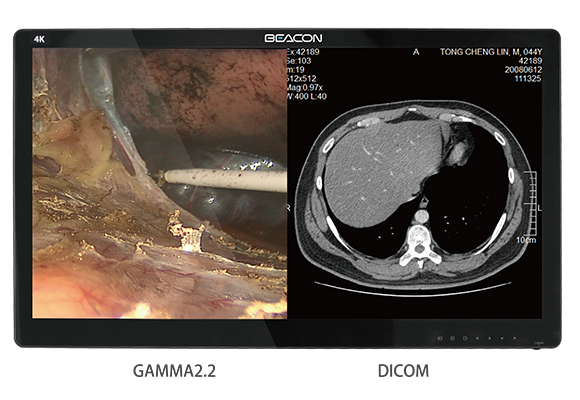

S3181P is a high-performance 4K endoscopic surgical medical monitor specially designed for operating rooms.

With the characteristics of high brightness, high contrast, and wide viewing angle, it provides surgeons and staff with real-time and accurate real-time surgical images.

The full-plane appearance design and the new Optical Bonding process technology meet the requirements of ultra-low reflection of surgical images and high-level purification of the operating room.

C53S+

Feature Highlights

High Brightness and Contrast

By using local backlight control technology, the brightness and darkness of the backlight can be controlled in real-time based on the image, achieving peak brightness ≥ 1750cd/m2 and contrast ≥ 1000000:1.

Multi-screen display

PaP function can be used to view two independent signal sources simultaneously within one screen. With PiP function, the second signal can be displayed above the main signal, size and position of the PiP window can be adjusted. In four-screen mode, four signal sources can be displayed on the monitor screen, arranged in the shape of "田". It is very useful when multiple images need to be viewed at the same time (such as multiple modes). (Four-screen mode is only available on 55-inch 4K monitors)

True Color Gamut

Supporting BT.2020 compliance will allow Beacon's 4K display perform accurate color recognition from analog 4K video connectivity beyond the Beacon's HD monitor's REC709 compliance. It can achieve the perfect presentation of the dynamic images captured by the BT.2020 standard camera.

Image 180° rotation and mirroring

Regardless of the orientation of the surgical camera, you can rotate or mirror the displayed image by 180 degrees to find the perfect surgical view, improving the convenience of the operating room.

Technical Specification
Product modelS3181P
Product name4K UHD Surgical Display
Display size31.5"
Support color1.07 billion
Resolution3840×2160
Viewing angle178° Typ.
Brightness1000cd/m² Typ.
Contrast1300:1 Typ.
Input signal interface

DVI-D (Single link)*1, DVI-D(Dual link)*1

DP 1.2*1, 3G-SDI*1,HDMI 2.0*1
12G-SDI/4*3G-SDI
